- SKU:
- BFIA-BP3479RCTC
- Cam:
- Hydraulic Roller - .543 Intake / .554 Exhaust Lift - 218 Intake / 226 Exhaust Duration -@ .050 - 112 LSA
- Title:

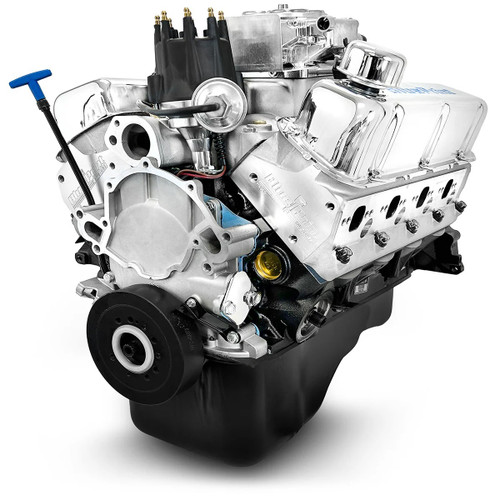

- BluePrint Engines Ford Small Block Compatible 347 C.I. Base Dressed - Rear Sump Oil Pan - Carbureted
- Torque:
- 415
- Pistons:
- Forged
- Quantity:
- EA
- Horsepower:
- 415
- Firing Order:
- 1,3,7,2,6,5,4,8
- Cylinder Heads:
- Aluminum Cylinder Heads
- Engine Balance:
- Externally Balanced - 28oz
- Oil Pan Included:
- Yes-Dual/Rear Sump
- Prop 65 Y/N Flag:
- Yes
- Block Description:
- BluePrint Engines Cast Iron Block - 302 W - 4 Bolt Main - 4.000" Bore
- Compression Ratio:
- 10.0:1
- Crankshaft Vendor:
- BluePrint Engines
- Rotating Assembly:
- Cast Crank - 3.4 in. Stroke and forged 5.4 in. Rods
- Distributor Vendor:
- BluePrint Pro Billet
- Fuel Delivery Type:
- Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke - Carbureted
- Timing Requirements:
- Initial Timing 10-16 - Total Timing 32-34
- Water Pump Included:
- No
- Air Cleaner Included:
- No
- Cylinder Head Vendor:
- BluePrint Engines
- Distributor Included:
- Yes
- Fuel Delivery Vendor:
- Holley
- Intake Manifold Type:
- Dual Plane, Satin Aluminum
- Rear Main Seal Style:
- 1 Piece
- Spark Plugs Included:
- No
- Timing Cover Included:
- Yes
- Valve Covers Included:
- Yes
- Intake Manifold Vendor:
- BluePrint Engines
- Recommended Spark Plug:
- BPP7938 - NGK 7938 BKR5E
- Cylinder Heads Included:
- Yes
- Recommended Octane Fuel:
- 91 Octane
- Intake Manifold Included:
- Yes
- Spark Plug Wires Included:
- No
- Harmonic Balancer Included:
- Yes
- Recommended Spark Plug Gap:
- .035 in.
- Flexplate/Flywheel Included:
- No
- Recommended Stall Converter:
- 2000-2400 RPM
- Carb/Fuel Injection Included:
- Yes
- Recommended Harmonic Balancer:
- BPP28
- Recommended Flexplate/Flywheel:
- BPPF157T28 - BPPF28164
- AAIA SKU:
- BP3479RCTC-FMKG
- Manufacture Code:
- BP3479RCTC
- Part Types:
- Engine Complete Assembly
